TIMM Medium Bite Grounding Clamp

TIMM Medium Bite Grounding Clamp

Applications: Medium to small sized drums, barrels, containers, canisters, buckets, oil cans, filling funnels and small plant components


excl. VAT plus shipping costs

SKU TBMEDIUM Categories , ,
Add to quote


  • Handy all-round solution for electrostatic grounding in rough work environments
  • Easily handling with bare hands or thick work gloves
  • Extra hardened teeth to penetrate even thin coating and product deposits
  • Strong pliers spring ensures best biting force
  • Protection of teeth against wear and tear when not in use
  • Integrated strain relief prevents the cable from being torn off from the clamp during work

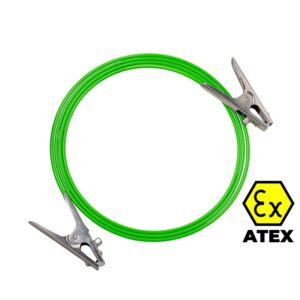

  • TIMM Medium Bite can be ordered individually or ready for use with connected grounding cable
  • We recommend to use this clamp with our very strong coiled steel stranded cable

Contact Person

Do you have questions about the product?

Do you have questions about the product or the TIMM-Onlineshop? Please contact me!

Svenja Steppe
Sales Engineer & PM Dust Ex

write an E-Mail
+49 (0) 40 248 35 63 – 0

Technical Specifications

Name / type:TIMM Medium Bite
Features:Stainless steel V2A (1.4301)
Robust construction
Hardened stainless steel teeth
Both teeth on one side
Tip protection in rest position (opposite relief bores)
Strong spring force
Cable connection with strain relief
Size:Leg length 140 mm
Opening width 15 mm
Max. cable cross-section:Connect grounding cables up to 4 mm²
Cable connection to clamp with lug M4
Ex Zones:Zone 1, 21
Ex Marking:Ex II 2 G Ex h IIA / IIB / IIC T6 Gb
Ex II 2 D Ex h IIIC T80°C Db
